2015 Ford Explorer and Police Interceptor Electrical Wiring Diagrams

All Models Including Explorer Base, XLT, Sport & Limited with 2.0L I4 Turbocharged EcoBoost and/or 3.5L V6 Engines | Police Interceptor Utility Vehicle with the 3.7L V6 Ti-VCT and/or 3.5L EcoBoost V6 Engines

Published by the Ford Motor Company

Covering Schematics * Fuse Panel/Circuit Protection * Charging System * Power Distribution * Wiring Diagrams * Component Testing * Connector Faces * Component Location Views * Harnessing * Vehicle Repair Location Codes

This is the Official Manual of the dealerships, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x 1.2". Approx. 650 pages.

Condition

Good to very good condition - Covers show light wear. All pages are in place and straight. Page surfaces are clean.

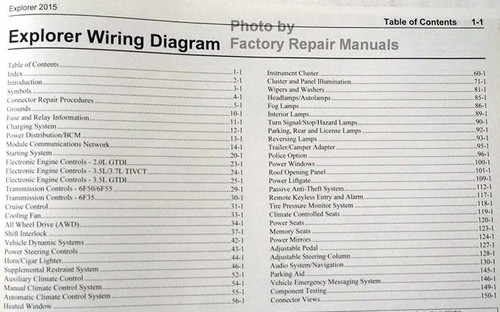

Topics Include:

• General Information
• Grounds
• Fuse Panel/Circuit Protection
• Charging System
• Power Distribution
• Communication Network
• Wiring Diagrams
• Component Testing
• Connector Faces
• Component Location Views
• Harnessing
• Vehicle Repair Location Codes
