1976 GMC Astro 95 Chevy Titan 90 with Cummins VT903 Diesel Fold Out Wiring Diagram Original
(No reviews yet)
Write a Review
- Condition:
- New
Description
1976 Chevy / GMC DB-9003, 9502 Wiring Diagram
Covering the 1976 Chevy Titan 90 and GMC Astro 95 Trucks with the VT903 Cummins Diesel Engine. These are model numbers DB-9003 and DB-9502.
1 page that folds out to 11" x 28" | Original - Published by the General Motors Corporation

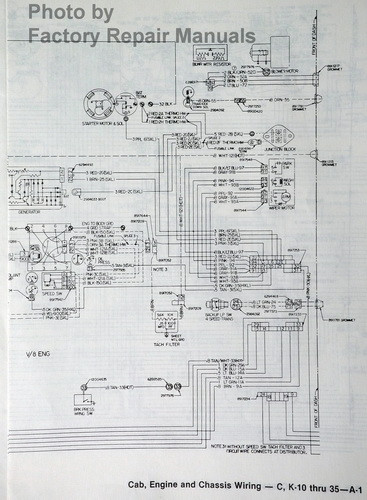

In Black and White - Each wires color is clearly displayed. End to end wiring including connector configurations, locations, relays, grounds & overall wiring diagrams
