1983 Oldsmobile (All) Electrical Troubleshooting Manual Wiring Diagrams Original

1983 Oldsmobile Electrical Troubleshooting Manual

Covering the following:

• 1983 Olds 98 Regency
• 1983 Olds Custom Cruiser
• 1983 Olds Cutlass Calais
• 1983 Olds Cutlass Ciera
• 1983 Olds Cutlass Cruiser
• 1983 Olds Cutlass Supreme
• 1983 Olds Delta 88, Delta 88 Royale
• 1983 Olds Firenza
• 1983 Olds Omega
• 1983 Olds Toronado

11" x 8.5" x 1.6". Approx. 900 pages | Published by the General Motors Corporation

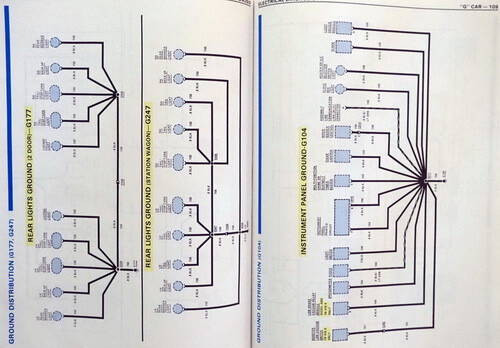

Connector Configurations * Harness Locations * Circuits * Relays * Grounds * Vacuum Diagrams * Valve & Sensor Locations * Hose Colors * Vacuum Distribution * Wiring Diagrams

This ETM is written by GM specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.

Condition

Good usable condition. Covers show little wear. All pages are in place and straight. Page surfaces are mostly clean with some signs of previous corner moisture.

Table of Contents:

• General Information
• Power and Grounds
• Powertrain Electrical
• Antilock Brake System
• Supplemental Inflatable Restraint
• Body Electrical
• Instrument Panel
• Power Locks and Seats
• Climate Control
• Wiring Diagrams
