General Motors Corporation
1986 GMC Brigadier and Astro 95 Fold Out Wiring Diagrams Original
(No reviews yet)
Write a Review
- Condition:
- New
Description

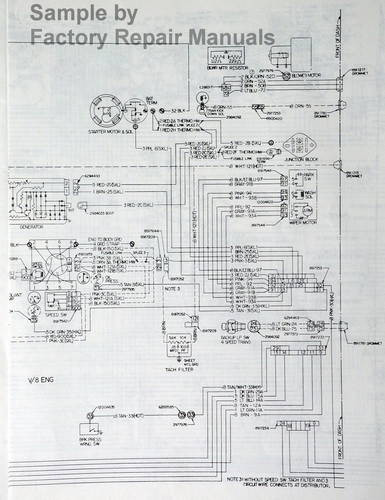

1986 GMC Brigadier/Astro Wiring Diagrams
Covering the following:
- 1986 GMC Astro 95s including the D9K020, D9K042, D9K064, D9L042, D9L064, - Straight Truck, Tractor Truck, Gliders - Low Tilt and High Tilt
- 1986 GMC Brigadiers including the J8C042, J8C064, J9C020, J9C042, J9C064 - Straight Truck, Tractor Truck, Gliders - Short Conventional
1 page (both sides) that folds out to 11" x 38" | Published by the General Motors Corporation
Circuit Diagrams * Locations * Power Distribution * Ground Distribution * Wiring Diagrams
