Yamaha Motor Company
2001 Yamaha XT225 Serow (XT225N/NC) Service Manual Supplement
- Condition:
- Used
Description
Yamaha XT225N/NC Service Manual Supplement
33 pages | LIT-11616-14-42 | Published by the Yamaha Motor Corporation
This booklet is a supplement to the XT25D/DN Service Manual (LIT-11616-07-99). It provides specifications and service data that was changed for the 2001 model year. This must be used along side that service manual for complete coverage of your 2001 Yamaha Serow (XT225)
Covering Maintenance Specifications * Tightening Torques * Cable Routing * Throttle Inspection and Adjustment * Engine Assembly and Adjustment * Front Brake * Switches * Wiring Diagram
This was written by Yamaha specifically for the vehicle(s) listed. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
Condition
Very good condition. Covers show little wear. All pages are in place and straight. Page surfaces are clean.

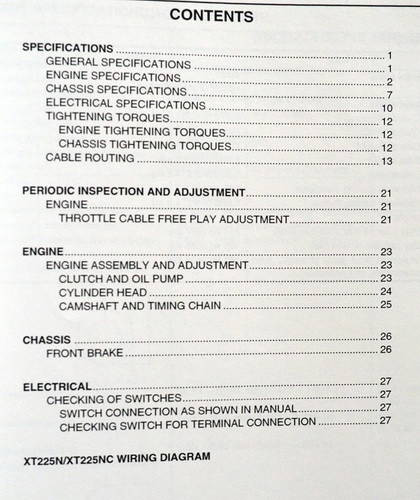

Table of Contents
- General Specifications
- Engine Specifications
- Chassis Specifications
- Electrical Specifications
- Tightening Torques
- Cable Routing
- Throttle Cable Adjustment

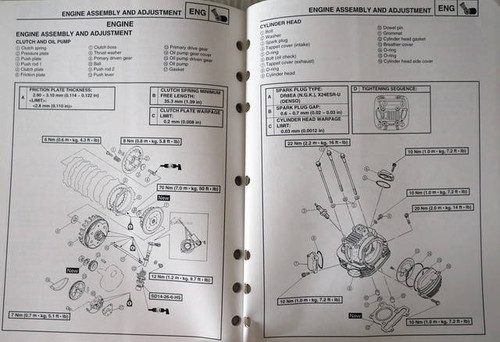

- Engine Assembly and Adjustment
- Clutch and Oil Pump
- Cylinder Head
- Camshaft and Timing Chain
- Front Brake
- Checking the Switches
- Wiring Diagram
