1986 Chevy S10 GMC S15 Wiring Diagrams Pickup Blazer Jimmy Original
(No reviews yet)
Write a Review
- SKU:
- 15598477-VG
- MPN:
- X8632WD
- Condition:
- Used
Frequently bought together:
Description
1986 Chevy GMC ST Models Electrical Wiring Diagrams
Chevy S10 Pickup Base, Durango, Sport & Tahoe | S10 Blazer Base, Durango, Sport & Tahoe / GMC S15 Pickup Base, S15 Gypsy, S15 Sierra Classic, S15 High Sierra / S15 Jimmy Base, S15 Jimmy Gypsy S15, S15 Sierra Classic
13 pages that fold out to 11" x 38" each | Published by the General Motors Corporation

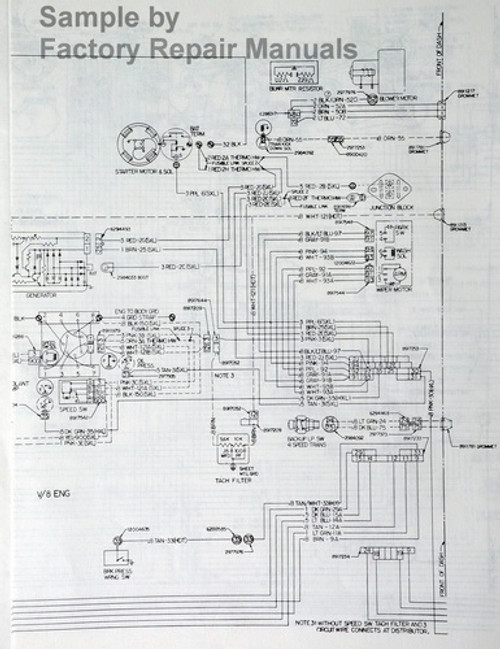

Circuit Diagrams * Locations * Power Distribution * Ground Distribution * Wiring Diagrams
