1986 Ford LTD / Mercury Marquis Electrical Wiring Diagrams

Covering the Ford LTD & LTD Brougham / Mercury Marquis, Marquis Brougham Sedan & Marquis Brougham Wagon | *NOTE: Does Not Cover the LTD Crown Victoria or Grand Marquis

18 pages opening up to 12.5" by 25" each | Published by the Ford Motor Company

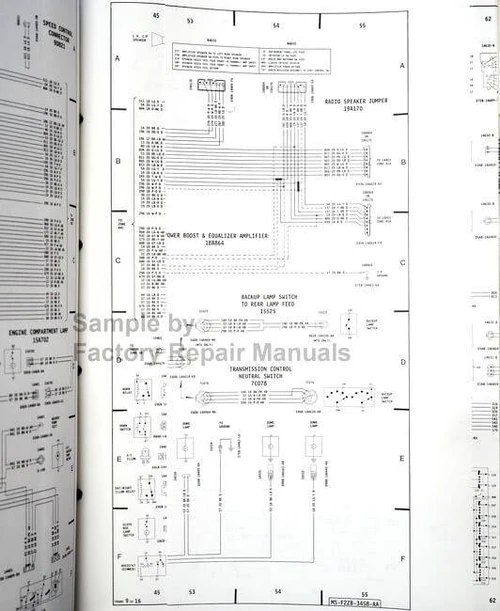

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. Covers are clean. All pages are in place and straight. Page surfaces are clean.
