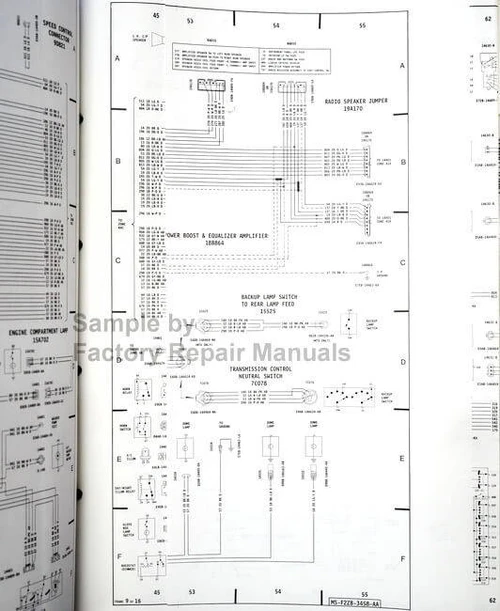

1986 Lincoln Continental Electrical Wiring Diagrams

All Including Continental Base & Givenchy | 26 pages opening up to 12.5" by 25" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. Covers are clean. All pages are in place and straight. Page surfaces are clean.
