1988 1989 1991 Honda Z50R Factory Service Manual

Providing Complete Maintenance, Service and Repair for the Honda Mini Trail 50 | 11" x 8.5" x .5" | Approximately 225 pages | Published by the Honda Motor Company

Covering Specifications * Maintenance * Testing and Diagnostics * On Bike Repairs * Component Removal * Disassembly * Reassembly * Installation * Electrical * Wiring Diagrams

This is the Official Service Manual that the dealers and shops use, written by Honda specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is incredibly comprehensive with detailed diagrams and exploded views. It is the best money can buy and a must for anyone who insists on Genuine OEM quality parts.

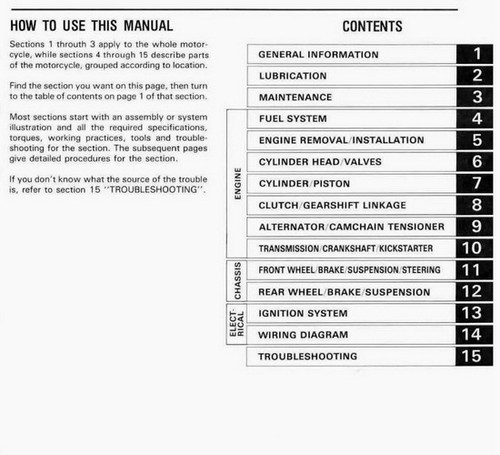

Table of Contents

• General Information
• Lubrication
• Maintenance
• Fuel System
• Engine Removal/Installation
• Cylinder Head/Valves
• Cylinder/Piston
• Clutch/Gearshift Linkage
• Alternator/Camchain Tensioner
• Transmission/Crankshaft/Kickstarter
• Front Wheel/Brake/Suspension/Steering
• Rear Wheel/Brake/Suspension
• Ignition System
• Wiring Diagram
• Troubleshooting

Condition

Very good condition. Covers show little wear. All pages in place and straight. Page surfaces are clean.
