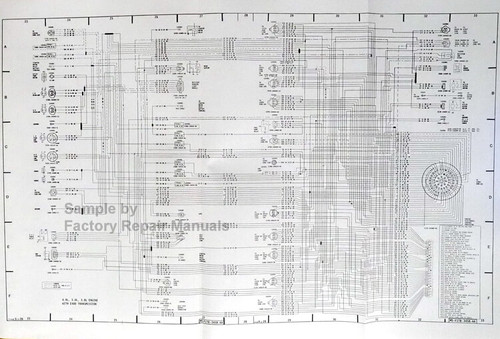

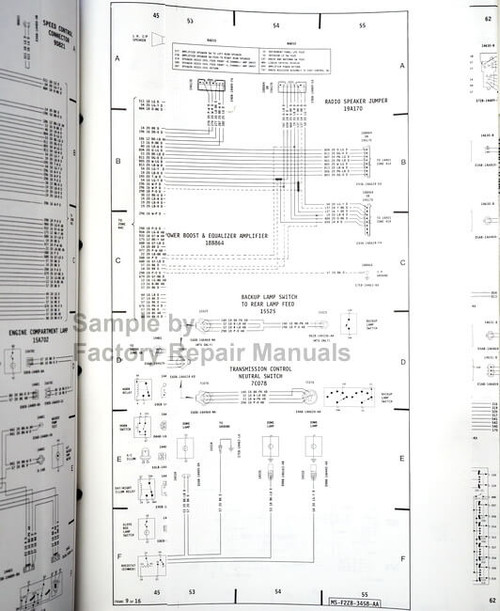

1988 Ford CF Cargo Wiring Diagrams

Providing Wiring Schematics for the 1988 Ford CF6000 Cargo, CF7000 Cargo, CF8000 Cargo, CFT8000 Cargo

(5) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. All pages are in place and straight. Page surfaces are clean.
