1988 Ford Truck (COWL) F600 F700 F800 B600 B700 Foldout Wiring Diagrams

1988 Ford B F 600-800 (COWL) Wiring Diagrams

Providing Wiring Schematics for the 1988 Ford B600 School Bus, B700 School Bus, F600, F700, F800 (Cowl Models)

(5) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

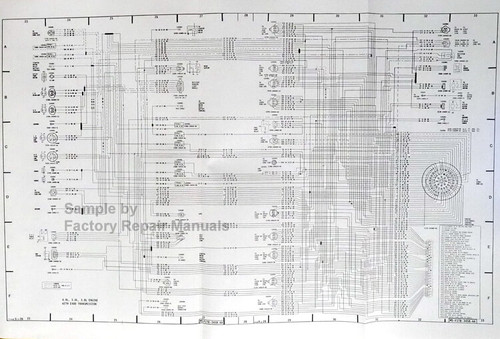

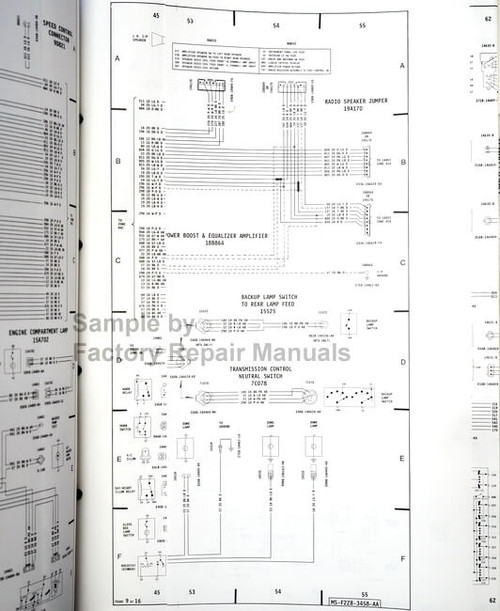

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. All pages are in place and straight. Page surfaces are clean.
