1989 Ford Tempo Mercury Topaz Large Format Wiring Diagrams Original

1989 Tempo/Topaz Wiring Diagrams

Providing Wiring Schematics for the following:

• 1989 Ford Tempo Sport, Tempo GL, Tempo GLS, Tempo LX
• 1989 Mercury Topaz GS, Topaz LS, Topaz XR5 & Topaz LTS
• FWD and AWD

(9) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

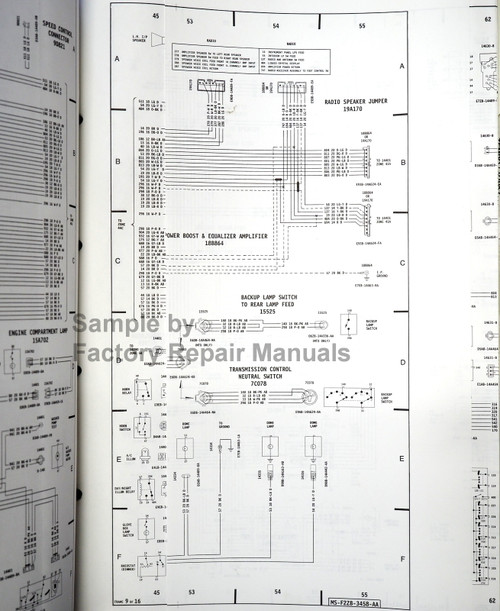

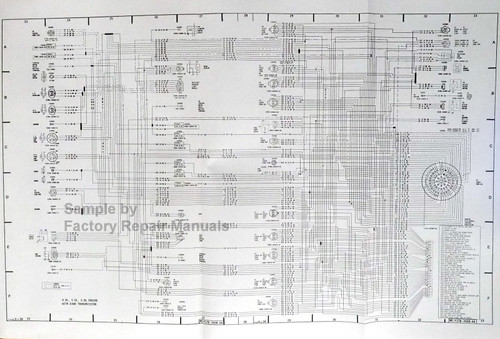

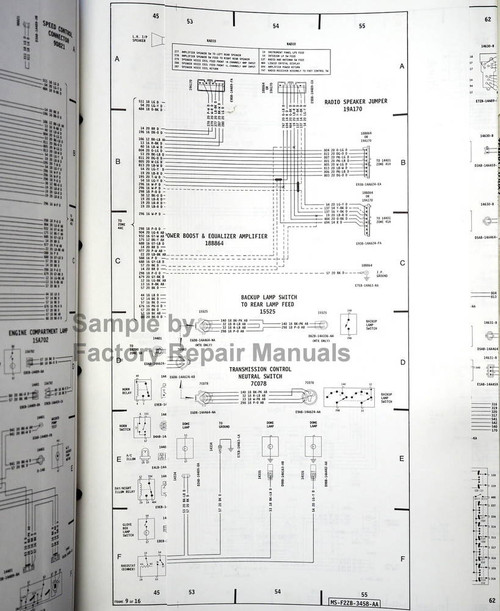

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. All pages are in place and straight. Page surfaces are clean.
