1989 Ford Thunderbird Mercury Cougar Large Format Wiring Diagrams Original

1989 Thunderbird/Cougar Wiring Diagrams

Providing Wiring Schematics for the following:

• 1989 Ford Thunderbird Base, LX and Super Coupe
• 1989 Mercury Cougar LS & XR7
• Coupe, Sedan & Convertible

(28) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

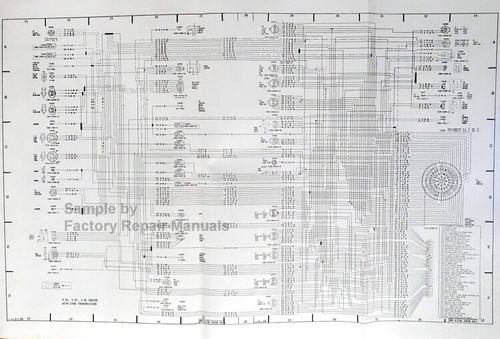

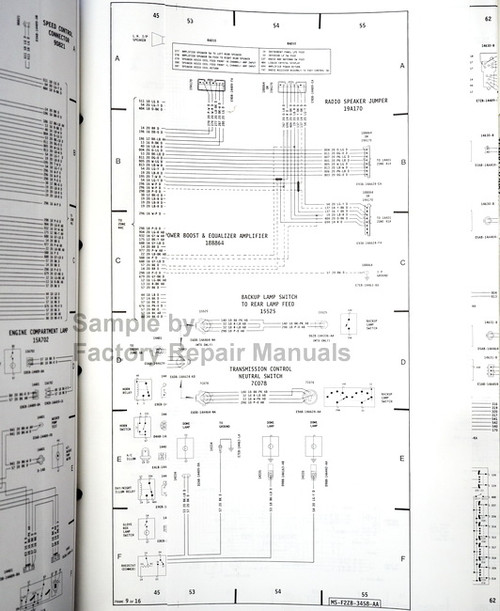

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Good to very good condition. All pages are in place and straight. Page surfaces are mostly to all clean.
