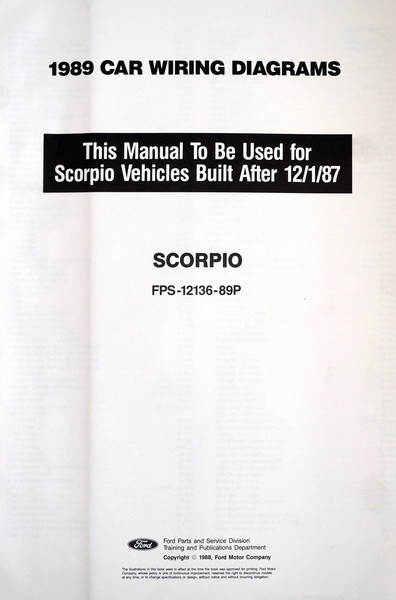

1989 Merkur Scorpio Large Format Electrical Wiring Diagrams Original 1988.5 Also

1989 Merkur Scorpio Wiring Diagrams

Providing Wiring Schematics for the All Scorpios built after 12/1/1987 to include Late 1988 and 1989 Mercury Scorpios

(27) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Good to very good condition. All pages are in place and straight. Page surfaces are mostly to all clean.
