1990 Ford Crown Victoria Mercury Grand Marquis Large Format Wiring Diagrams Original

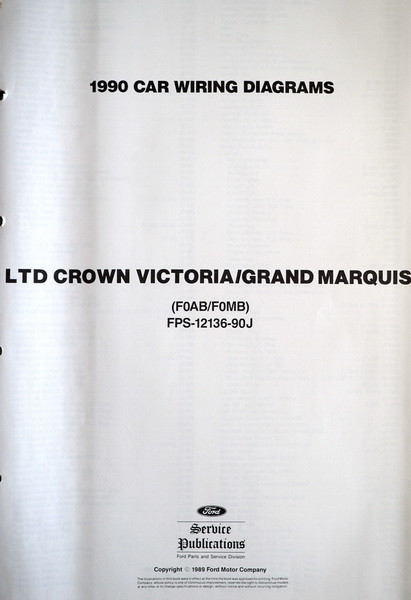

1990 Crown Victoria/Grand Marquis Wiring Diagrams

Providing Wiring Schematics for the following:

• 1990 Ford Country Squire Base & LX
• 1990 Ford LTD Crown Victoria Base, S & LX
• 1990 Mercury Colony Park GS & LS
• 1990 Mercury Grand Marquis Base, GS & LS

(17) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. All pages are in place and straight. Page surfaces are clean.
