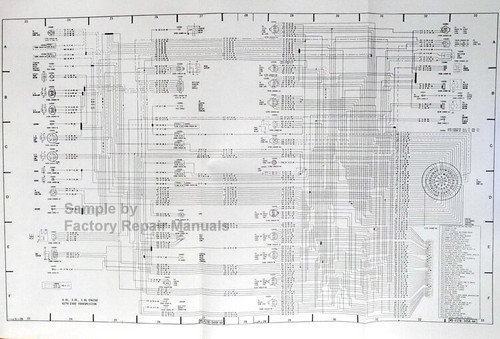

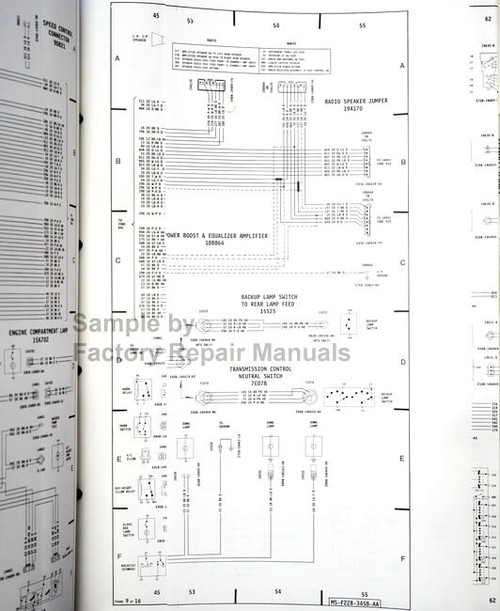

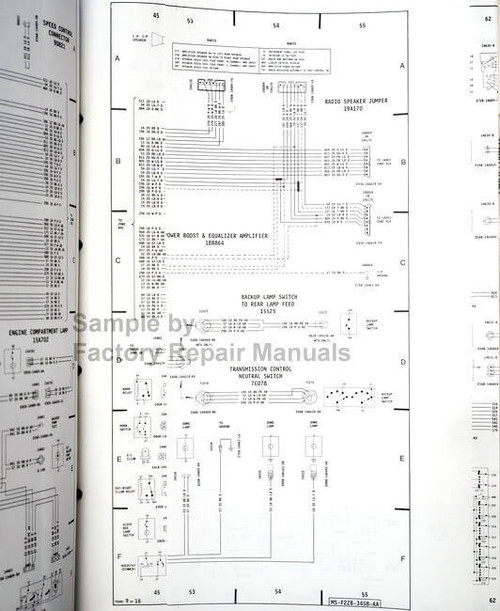

1991 Ford Escort Mercury Tracer Large Format Wiring Diagrams Original Schematics

1991 Escort/Tracer Wiring Diagrams

Providing Wiring Schematics for the following:

• 1991 Ford Escort Base, Escort LX, Escort GT
• 1991 Mercury Tracer Base, Tracer LS, Tracer LTS & Tracer Trio
• 2 Door Hatchback, 4 Door Hatchback & Wagon

(14) - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Good to very good condition. All pages are in place and straight. Page surfaces are mostly to all clean.
