1991 Mazda Miata Electrical Wiring Diagrams

Covering the Miata Base & Miata SE | Published by the Mazda Motor Corporation

Covering Schematics * Troubleshooting * Relay Locations * Routing * Flow Charts * System Circuits * Ground Points * Connector Part Numbers * Overall Wiring Diagrams

This is the Official Manual of the dealerships, written by Mazda specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. It is the best money can buy and a must for anyone who insists on Genuine OEM quality parts.
Approx. 92 pages.

Condition

Good condition. Covers show some light wear. All pages are in place and straight. Page surfaces are clean.

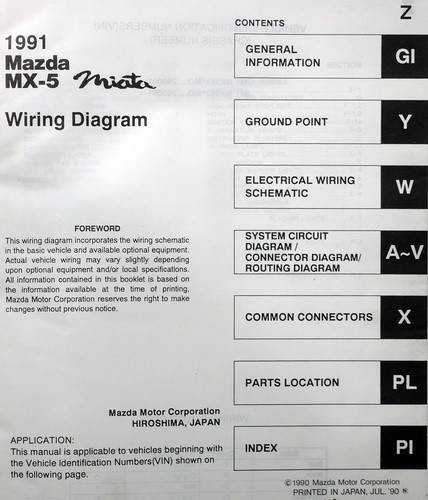

Topics Include:

• General Information
• Ground Points
• Electrical Wiring Schematic
• System Circuit Diagram
• Connector Locations
• Common Connectors
• Complete Wiring System
