1992 Buick LeSabre Electrical Systems Manual and Wiring Diagrams Original

1992 Buick LeSabre Electrical Systems Manual

Providing Electrical Troubleshooting and Schematics for the 1992 Buick LeSabre Custom & LeSabre Limited

Large format - 11" x 17" x .8" | 415 pages | Published by the General Motors Corporation

Electrical Diagnosis & Power Distribution * Engine Electrical * ABS * Body Electrical * Instrument Panel * Climate Control * Power Locks and Seats * Wiring Diagrams

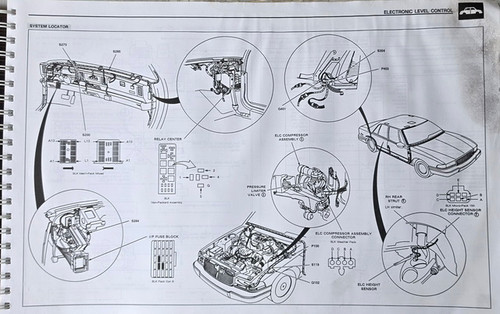

This factory manual is written by GM specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.

Available Conditions

• Good usable condition. Covers show light wear and soiling. All pages are in place and straight. Page surfaces are mostly clean with some light oil stains.
• Fair condition. Covers show wear and heavy soiling. All pages are in place and straight. Page surfaces are mostly clean with some light oil stains.

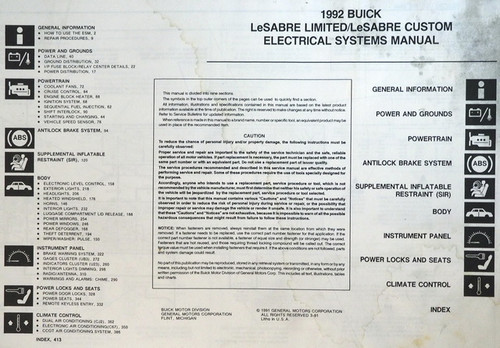

Topics Include

• General Information
• Power and Grounds
• Powertrain Electrical
• Antilock Brake System
• Body Electrical
• Instrument Panel
• Power Locks and Seats
• Climate Control
