1992 Chrysler Plymouth Dodge AA & AS Body Diagnostic Procedures Shop Manual

1992 Chrysler AA & AS Body Diagnostic Procedures

Providing Diagnostics for Body Components, Instruments, Lighting, Gauges and other Related Components found in the following:

• Chrysler LeBaron (Sedan Only), Town & Country
• Dodge Caravan, Grand Caravan, Spirit
• Plymouth Acclaim, Grand Voyager, Voyager

Original Publication | 11" x 8.5" x .8" | 325 pages | Published by the Chrysler Corporation | NOTE: This DOES NOT Contain Service or Repair

Covering System Identification * Functional Operation * On-Board Diagnostics * Diagnostic Trouble Codes * DRBII Error Messages * Component Locations * Connector Pinouts * Schematic Diagrams * Charts and Graphs

This comprehensive diagnostic manual provides the resource that the professional technician needs to diagnose and troubleshoot a specific system on a Chrysler vehicle. A complete working knowledge of the vehicle, system and/or components is written in straightforward language with illustrations, diagrams and charts. The information is specific to the chosen vehicle and system and includes: Diagnostic procedures to aid in the diagnosis of electrical and mechanical systems, DTCs, and symptom-based concerns

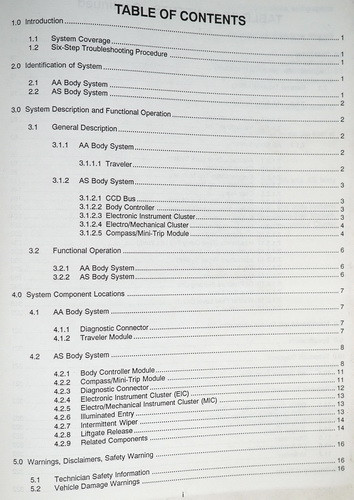

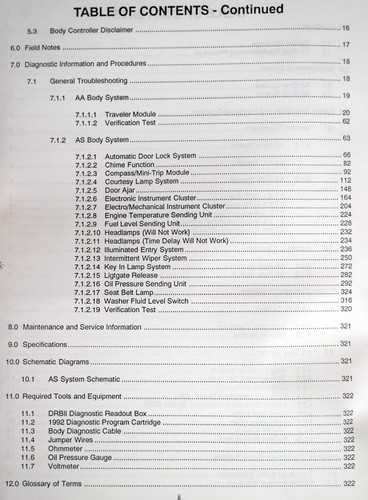

Topics Include

• Identification of System
• System Description and Functional Operation
• Disclaimers, Safety, Warnings
• Required Tools and Equipment
• Glossary of Terms
• Diagnostic Information and Procedures
• Component Locations
• Connector Pinouts
• Schematic Diagrams
• Charts and Graphs

Condition

Good condition. Covers show some soiling. All pages are in place and straight. Page surfaces are mostly clean.
