1992 Dodge Truck Van 3.9L 5.2L Engine Powertrain Diagnostic Procedures Manual

1992 Dodge 3.9L/5.2L MPI Engine Diagnostic Procedures

Providing Powertrain Diagnostics for the 3.9L V6 and 5.2L V8 Engines found in the following:

• 1992 Dodge B150, B250, B350 Vans
• 1992 Dodge D150, D250, W150, W250 Trucks

Original Publication | 11" x 8.5" x .8" | 320 pages | Published by the Chrysler Corporation | NOTE: This DOES NOT Contain Service or Repair

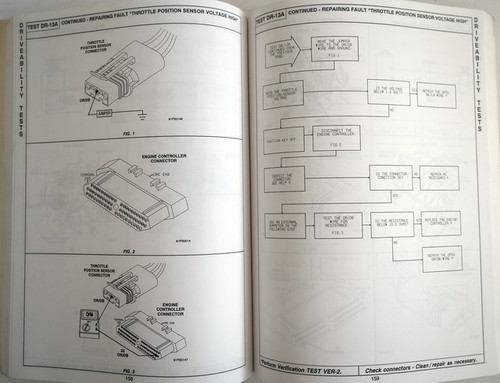

This comprehensive diagnostic manual provides the resource that the professional technician needs to diagnose and troubleshoot a specific system on a FCA vehicle. A complete working knowledge of the vehicle, system and/or components is written in straightforward language with illustrations, diagrams and charts. The information is specific to the chosen vehicle and system and includes: Diagnostic procedures to aid in the diagnosis of electrical and mechanical systems, DTCs, and symptom-based concerns

Table of Contents

• DRBII Functional Flow Diagram
• Visual Inspections
• On Board Diagnostic System
• System Fault Messages
• DRBII Diagnostic Read-Out Box
• DRBII Test Functions
• Diagnostic Test Procedures
• Tools and Equipment
• Component and Connector Locations
• Inspection of Electrical Connectors
• System Schematics
• Hoses and Vacuum Lines Inspection
• Safety Instructions
• Definition of Normal Operating Temperature
• EMR Mileage Transfer
• Diagnostic Procedures
• No Start Tests
• Driveability Tests
• No Fault Tests
• Verification Tests
