2007 Ford Explorer Mercury Mountaineer Electrical Wiring Diagrams

(1 review) Write a Review
SKU:
FCS1220607-G
MPN:
FCS1220607
Condition:
Used

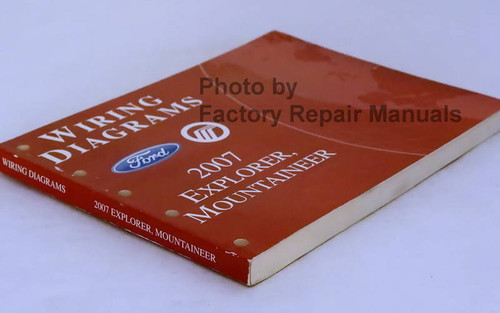

  • 2007 Ford Explorer, Mountaineer Mercury Wiring Diagrams
  • 2007 Ford Explorer, Mountaineer Mercury Wiring Diagrams
  • 2007 Ford Explorer, Mountaineer Mercury Wiring Diagrams Table of Contents
MSRP: $79.00
$59.95
— You save $19.05
Frequently bought together:

Description

2007 Ford Explorer and Mercury Mountaineer Electrical Wiring Diagrams

All Models Including Explorer XLT, Eddie Bauer & Limited / Mountaineer Base & Premier | 4.0L V6 & 4.6L V8 Gas Engines

Published by the Ford Motor Company

Grounds * Circuit Protection * Power Distribution * Wiring Diagrams * Component Testing * Component Location Views * Harnessing * Vehicle Repair Location Codes

Written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. This manual contains Schematics and Routing Diagrams, Power Distribution, Component Location Views, Component Testing, Vehicle Repair Location Codes, Harnessing and more! A must for anyone who insists on Genuine OEM quality parts.
Approx. 300 pages.

Condition

Good condition. Covers show light wear. All pages are in place and straight. Page surfaces are mostly clean.

Topics Include:

  • General Information
  • Grounds
  • Fuse Panel/Circuit Protection
  • Charging System
  • Power Distribution
  • Communication Network
  • Wiring Diagrams
  • Component Testing
  • Connector Faces
  • Component Location Views
  • Harnessing
  • Vehicle Repair Location Codes
