2009 Explorer, Explorer Sport Trac, Mountaineer Factory Workshop Manuals

Ford Explorer XLT, Limited & Eddie Bauer, / Explorer Sport Trac Base, XLT & Limited / Mercury Mountaineer Luxury & Premier | 2x4 & 4x4 | 4.0L V6 & 4.6L V6 Gas Engines

Original 2 Volume Set | Published by the Ford Motor Company

Covering Specifications * Maintenance * Diagnosis & Testing * In Vehicle Repairs * Component Removal * Disassembly * Reassembly * Installation * Electrical

These are the Official Service Manuals that the dealers and shops use, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. They are incredibly comprehensive with detailed diagrams and exploded views. These are the best money can buy and a must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x 4.8". Approx. 2,800 pages.

Condition

Very good condition. Covers show little wear. All pages are in place and straight. Page surfaces are mostly to all clean.

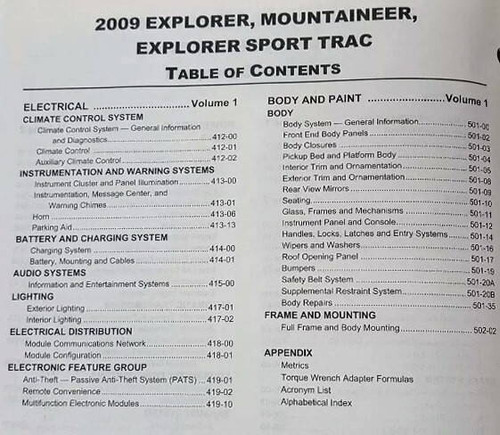

Table of Contents

Volume 1 of 2

• General Information
• Service Information
• Climate Control System
• Instrumentation Panel and Controls
• Warning Systems
• Battery & Charging System
• Audio systems
• Lighting
• Electrical Distribution
• Electronic Feature Group
• Body - Interior and Exterior
• Body Repairs
• Frame & Mounting

Volume 2 of 2

• Suspension
• Driveline
• Brake System
• Steering System
• Engine Mechanical
• Engine Cooling
• Fuel Charging and Controls
• Starting
• Ignition
• Engine Emission Controls
• Automatic Transmission
• Manual Transmission
• Clutch and Transfer Case
• Exhaust System
• Fuel System
