2012 Ford Flex Electrical Wiring Diagrams

All Flex Models Including SE, SEL, Limited & Titanium | FWD & AWD | 3.5L V6 & 3.5L Turbo EcoBoost V6 Engines

Covering Schematics * Fuse Panel/Circuit Protection * Charging System * Power Distribution * Wiring Diagrams * Component Testing * Connector Faces * Component Location Views * Harnessing * Vehicle Repair Location Codes

This is the Official Manual of the dealerships, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x .75". Approx. 375 pages.

Condition

Good to very good condition. Covers shows light wear. All pages are in place and straight. Page surfaces are mostly clean.

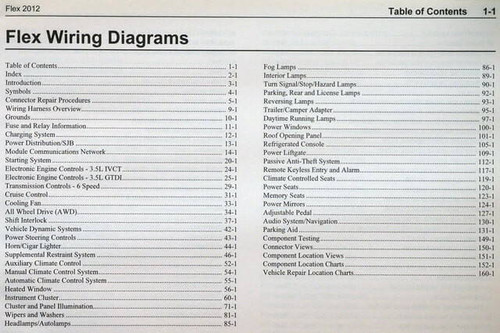

Topics Include:

• General Information
• Grounds
• Fuse Panel/Circuit Protection
• Charging System
• Power Distribution
• Communication Network
• Wiring Diagrams
• Component Testing
• Connector Faces
• Component Location Views
• Harnessing
• Vehicle Repair Location Codes
