2021 Ford Transit Connect Electrical Wiring Diagrams

Transit Connect Cargo & Passenger Vans | Transit Connect XL, Transit Connect XLT & Transit Connect Titanium

Published by the Ford Motor Company

Covering Schematics * Fuse Panel/Circuit Protection * Charging System * Power Distribution * Wiring Diagrams * Component Testing * Connector Faces * Component Location Views * Harnessing * Vehicle Repair Location Codes

This is the Official Manual of the dealerships, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x 1.5". Approx. 800 pages.

Condition

Brand New. This factory manual is brand new from the Ford Motor Company

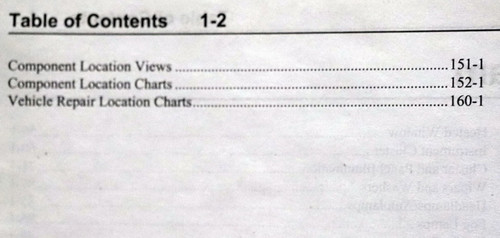

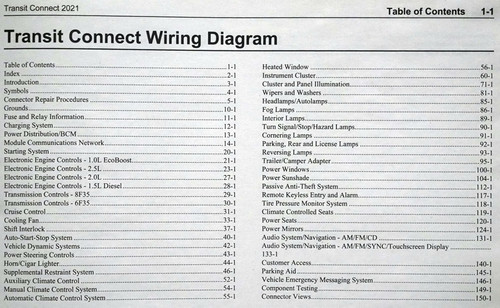

Topics Include

• General Information
• Grounds
• Fuse Panel/Circuit Protection
• Charging System
• Power Distribution
• Communication Network
• Wiring Diagrams
• Component Testing
• Connector Faces
• Component Location Views
• Harnessing
• Vehicle Repair Location Codes
